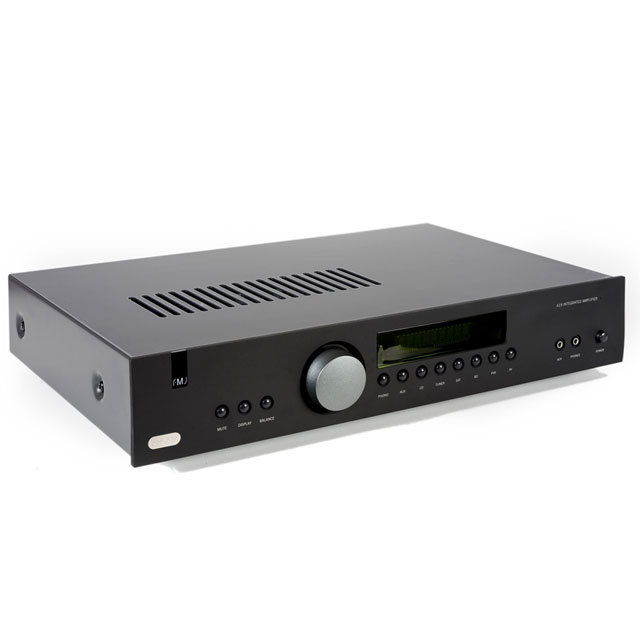

Arcam A19 Integrated Amplifier

25,200,000

A19 kết hợp các công nghệ thành phần mới nhất và thiết kế tinh tế tỉ mỉ của ARCAM cho âm thanh tự nhiên đến bất ngờ.

Danh mục: , Từ khóa:

Mô tả

A19 là sự lựa chọn hoàn hảo cho các khách hàng đang tìm kiếm một chiếc ampli có thể tái tạo âm thanh đặc biệt nhưng giá cả lại phải chăng.

Featuring some of the latest thinking in high performance amplifier design, the A19 uses components and techniques mormally found in Arcam’s top of the range products. The amplifier’s design and performance have been refined and tuned to an exquisite degree. This focus on sound quality has led to an intellegent power supply design that also enables the amplifier to offer a flexible upgrade path. The power section of the A19 is design to be able to supply two of Arcam’s class-leading r-Series products in addition to its main duties. This allows the A19 to become a digital hub for a whole range of digital connection upgrades that includes both wireless Bluetooth® devices and USB sources.

While the world of music is increasingly a digital one, analogue sources are not forgotten. The continued popularity of vinyl has led Arcam to to equip the A19 with a new ultra-low noise moving magnet (MM) phono stage that allows the music enthusiast to enjoy their vinyl collection afresh. While the use of high performance headphones has grown dramatically of late, little effort has been made to improve the headphone sections of the amplifiers that drive them. The A19 addresses this by employing a completely new circuit that can deliver a level of sound quality that will thrill even the most demanding listener.

Technical Specifications

Continuous power output (20Hz—20kHz at 0.5% THD), per channel

  • Both channels, 8Ω, 20Hz—20kHz: 50W
  • Single channel, 4Ω, at 1kHz: 90W
  • Harmonic distortion, 80% power, 8Ω at 1kHz: 0.003%

Inputs

Phono (MM) cartridge

  • Input sensitivity at 1kHz: 5mV
  • Input impedance: 47kΩ + 100pF
  • Frequency response (ref. RIAA curve): 20Hz—20kHz ± 1dB
  • Signal/noise ratio (Awtd) 50W, ref. 5mV input: 80dB
  • Overload margin, 50mV at 1kHz: 20dB

Line and AV inputs

  • Nominal sensitivity: 1V
  • Input impedance: 10kΩ
  • Maximum input: 4.6Vrms
  • Frequency response: 20Hz—20kHz ± 0.2dB
  • Signal/noise ratio (Awtd) 50W, ref. 1V input: 105dB

Outputs

Preamplifier output

  • Nominal output level: 630mV
  • Output impedance: 230Ω

Heaphones Output

  • Maximum output level into 600Ω: 4V
  • Output impedance: 1ohm
  • Load range: 16Ω—2kΩ

Accessory power output

  • Using accessory power cable supplied, provides two 2.1mm DC connectors: 6V, 1A

General

  • Mains voltage: 110–120V~ or 220–240V~
  • Power consumption (maximum): 350W
  • Dimensions W x D x H (including feet): 432 x 275 x 85mm
  • Weight (net): 8.5kg
  • Weight (packed): 10.2kg
  • Supplied accessories: Mains lead, CR108 remote control, 2 x AAA batteries, Accessory power cable

E&OE – All specification values are typical unless otherwise stated.

Thông tin bổ sung

Hãng sản xuất

Arcam
